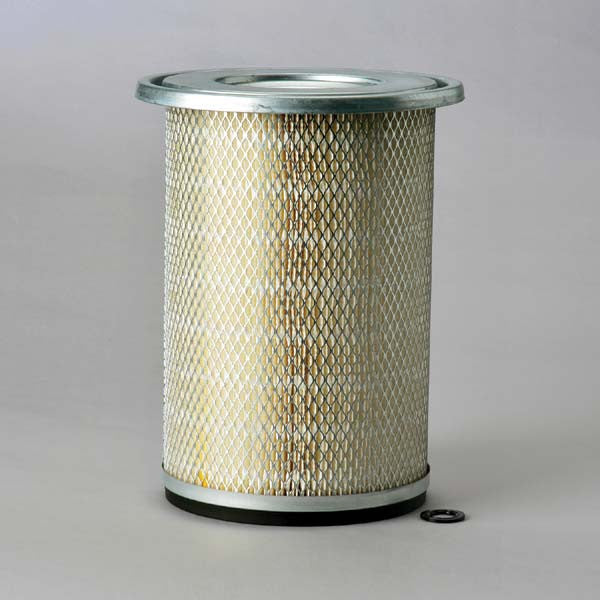

9693 | Crosland | Intake Air Filter Element
***Image may vary***

9693 | Crosland | OFS # 97-22-1059

  • $48.90


Usually Ships In 24-48 Hours

Performance Data
Micron Rating:  15.00 NOMINAL

Beta Rating:  N/A

Collapse Pressure Rating:  N/A

Maximum Temperature:  N/A

Direction of Flow:  OUTSIDE->IN

Recommended Changeout Differential Pressure:  20 PSID



Dimensional Specifications
Outer Diameter, Top:  10.45 IN   (265.43 MM)

Outer Diameter, Bottom:  8.70 IN   (220.98 MM)

Inner Diameter, Top:  5.33 IN   (135.38 MM)

Inner Diameter, Bottom:  0.88 IN   (22.35 MM)

Length:  13.50 IN   (342.90 MM)

Thread:  NONE



Physical Specifications
Handle:  NONE

Seal Material:  BUNA-N

Type of Adhesive:  N/A

Type of Endcap:  PLATED STEEL

Center Tube:  PLATEE STEEL

Type of Media:  PAPER

Filter Area:  N/A

Plating:  N/A

Outer Jacket:  NONE

Configuration:  DOUBLE OPEN END



Packaging Specifications
Number per Carton:  1

Carton Weight:  6.00 LB   (2.72 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**

Intake Air Filter Element
