9681K | Crosland | Intake Air Filter Element

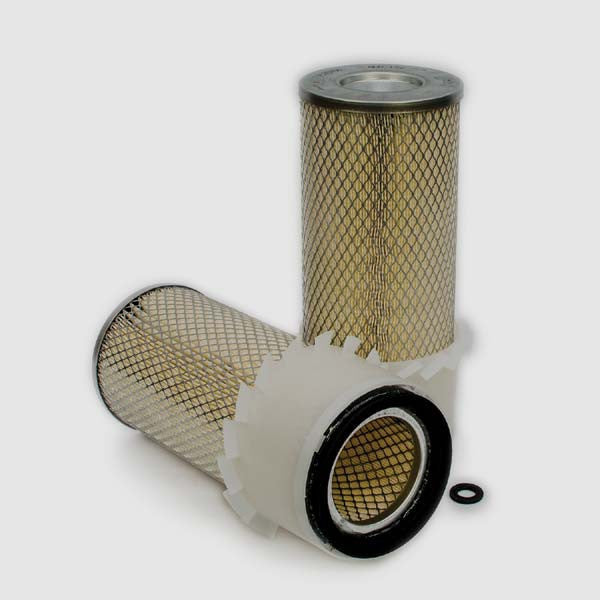

***Image may vary***

9681K | Crosland | OFS # 97-22-1237

  • $41.70


Usually Ships In 24-48 Hours

Performance Data
Micron Rating: 15.00 NOMINAL

Beta Rating:

Collapse Pressure Rating:

Maximum Temperature:

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID



Dimensional Specifications
Outer Diameter, Top: 6.34 IN (161.04 MM)

Outer Diameter, Bottom: 5.24 IN (133.10 MM)

Inner Diameter, Top: 3.35 IN (85.09 MM)

Inner Diameter, Bottom: 0.67 IN (17.02 MM)

Length: 12.50 IN (317.50 MM)

Thread: NONE



Physical Specifications
Handle: NONE

Seal Material:

Type of Adhesive:

Type of Endcap: PLATED STEEL

Center Tube: STEEL

Type of Media: PAPER

Filter Area: SQ.IN.

Plating:

Outer Jacket: YES

Configuration: SINGLE/FIN/BOLT HOLE



Packaging Specifications
Number per Carton: 1

Carton Weight: 2.20 LB (1.00 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**

Intake Air Filter Element
