9610 | Crosland | OFS # 97-22-0828
Performance Data
Micron Rating: 15.00 NOMINAL
Beta Rating: N/A
Collapse Pressure Rating:
Maximum Temperature:
Direction of Flow: OUTSIDE->IN
Recommended Changeout Differential Pressure: 20 PSID
Dimensional Specifications
Outer Diameter, Top: 3.62 IN (91.95 MM)
Outer Diameter, Bottom: 2.95 IN (74.93 MM)
Inner Diameter, Top: 2.42 IN (61.47 MM)
Inner Diameter, Bottom: 0.67 IN (17.02 MM)
Length: 14.06 IN (357.12 MM)
Thread: NONE
Physical Specifications
Handle: NONE
Seal Material: BUNA-N
Type of Adhesive:
Type of Endcap: PLATED STEEL
Center Tube: PLATED STEEL
Type of Media: FELT
Filter Area: SQ.IN.
Plating: ELECTROTIN PLATED
Outer Jacket: YES
Configuration: SINGLE / BOLT HOLE
Packaging Specifications
Number per Carton: 1
Carton Weight: 1.30 LB (0.59 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**

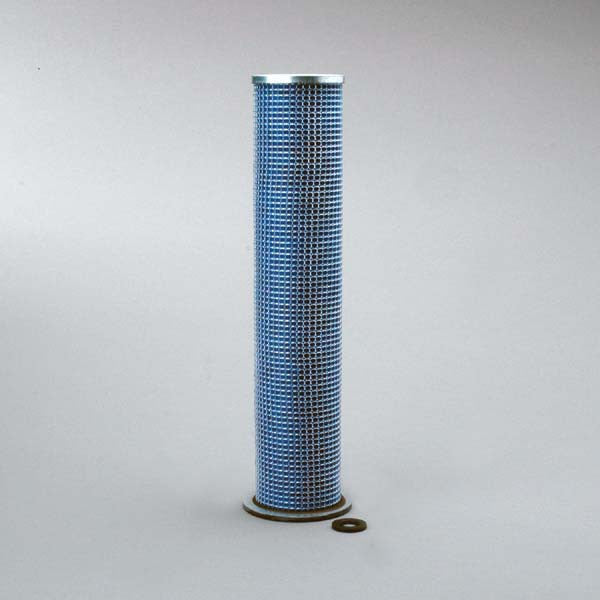

Intake Air Filter Element
