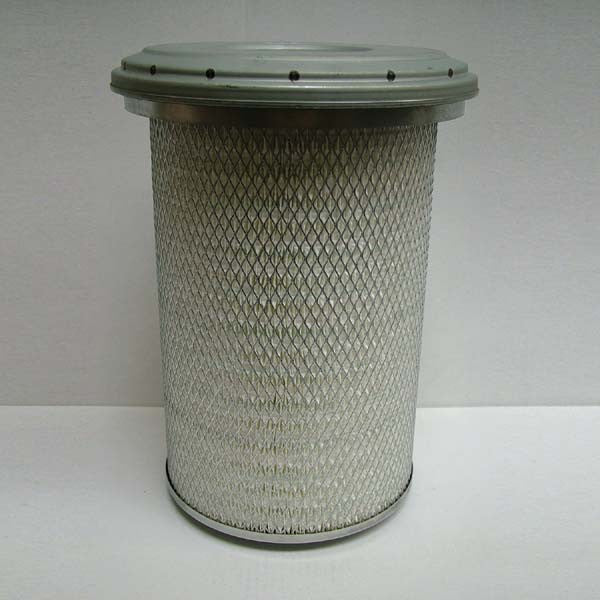

9556 | Crosland | Intake Air Filter Element
***Image may vary***

9556 | Crosland | OFS # 97-22-0500

  • $39.50


Usually Ships In 24-48 Hours

Performance Data
Micron Rating: 15.00 NOMINAL

Beta Rating:

Collapse Pressure Rating:

Maximum Temperature:

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID



Dimensional Specifications
Outer Diameter, Top: 8.94 IN (227.08 MM)

Outer Diameter, Bottom: 8.94 IN (227.08 MM)

Inner Diameter, Top: 0.44 IN (11.18 MM)

Inner Diameter, Bottom: 4.63 IN (117.60 MM)

Length: 15.00 IN (381.00 MM)

Thread: NONE



Physical Specifications
Handle: NONE

Seal Material: BUNA-N

Type of Adhesive: POLYVINYLCHLORIDE

Type of Endcap: PLATED STEEL

Center Tube: EXPANDED METAL

Type of Media: PAPER

Filter Area: SQ.IN.

Plating: ELECTROTIN PLATED

Outer Jacket: YES

Configuration: SINGLE W/BOLT HOLE



Packaging Specifications
Number per Carton: 1

Carton Weight: 7.00 LB (3.18 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**

Intake Air Filter Element
