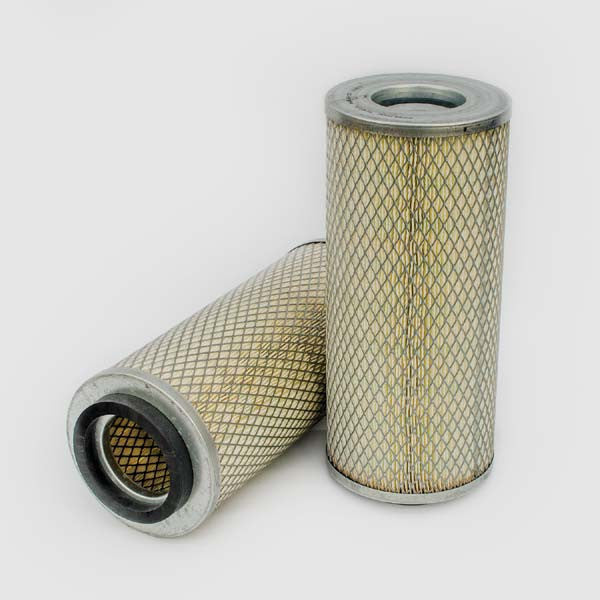

9530 | Crosland | Intake Air Filter Element
***Image may vary***

9530 | Crosland | OFS # 97-22-1081

  • $36.60


Usually Ships In 24-48 Hours

Performance Data
Micron Rating: 15.00 NOMINAL

Beta Rating:

Collapse Pressure Rating:

Maximum Temperature:

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID



Dimensional Specifications
Outer Diameter, Top: 4.96 IN (125.98 MM)

Outer Diameter, Bottom: 4.96 IN (125.98 MM)

Inner Diameter, Top: 2.52 IN (64.01 MM)

Inner Diameter, Bottom: 0.34 IN (8.64 MM)

Length: 11.58 IN (294.13 MM)

Thread: NONE



Physical Specifications
Handle: NONE

Seal Material:

Type of Adhesive:

Type of Endcap: PLATED STEEL

Center Tube: STEEL

Type of Media: PAPER

Filter Area: SQ.IN.

Plating:

Outer Jacket: YES

Configuration: SINGLE / BOLT HOLE



Packaging Specifications
Number per Carton: 1

Carton Weight: 1.80 LB (0.82 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**

Intake Air Filter Element
