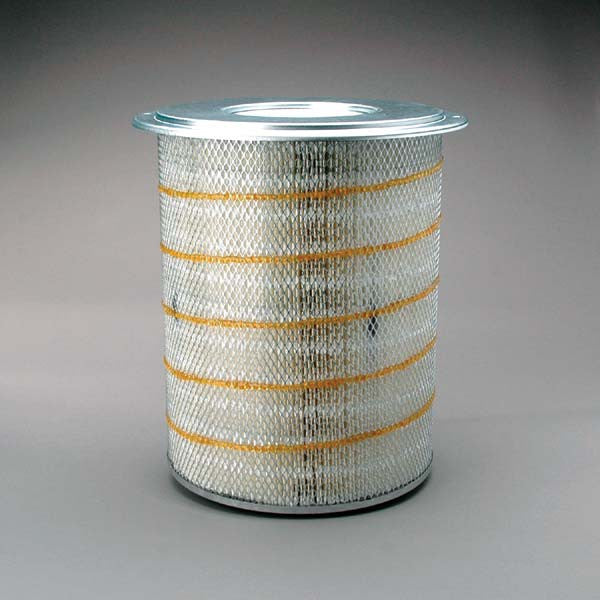

94726 | Big A | Intake Air Filter Element
***Image may vary***

94726 | Big A | OFS # 97-22-1146

  • $67.40


Usually Ships In 24-48 Hours

Performance Data
Micron Rating: 15.00 NOMINAL

Beta Rating:

Collapse Pressure Rating:

Maximum Temperature:

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID



Dimensional Specifications
Outer Diameter, Top: 16.26 IN (413.00 MM)

Outer Diameter, Bottom: 13.83 IN (351.28 MM)

Inner Diameter, Top:

Inner Diameter, Bottom: 9.48 IN (240.79 MM)

Length: 18.51 IN (470.15 MM)

Thread: NONE



Physical Specifications
Handle: NONE

Seal Material:

Type of Adhesive:

Type of Endcap: PLATED STEEL

Center Tube:

Type of Media: PAPER

Filter Area: SQ.IN.

Plating:

Outer Jacket: YES

Configuration: SINGLE OPEN END



Packaging Specifications
Number per Carton: 1

Carton Weight: 13.50 LB (6.12 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**

Intake Air Filter Element
