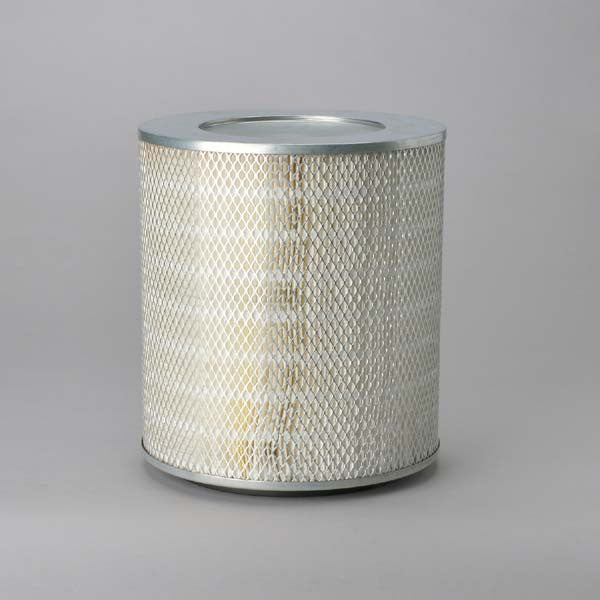

93368 | Big A | Intake Air Filter Element
***Image may vary***

93368 | Big A | OFS # 97-22-0471

  • $89.40


Usually Ships In 24-48 Hours

Performance Data
Micron Rating: 15.00 NOMINAL

Beta Rating: N/A

Collapse Pressure Rating: N/A

Maximum Temperature: 250 F

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID



Dimensional Specifications
Outer Diameter, Top: 11.88 IN (301.75 MM)

Outer Diameter, Bottom:

Inner Diameter, Top: 0.44 IN (11.18 MM)

Inner Diameter, Bottom: 7.13 IN (181.10 MM)

Length: 13.38 IN (339.85 MM)

Thread: NONE



Physical Specifications
Handle: NONE

Seal Material: BUNA-N

Type of Adhesive: PLASTISOL

Type of Endcap: PLATED STEEL

Center Tube: PLATED STEEL

Type of Media: PAPER

Filter Area: SQ.IN.

Plating: GALVINIZED

Outer Jacket: YES - METAL

Configuration: SINGLE OPEN END/BH



Packaging Specifications
Number per Carton: 1

Carton Weight: 7.20 LB (3.27 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**

Intake Air Filter Element
