92776 | Big A | OFS # 97-28-0193

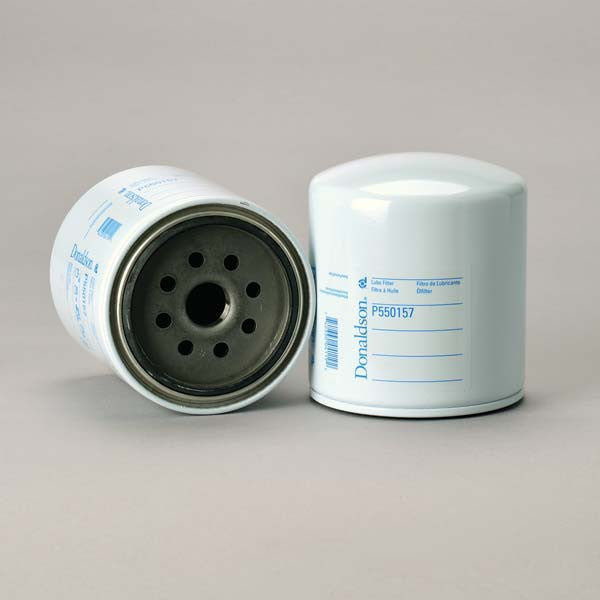

Lube Filter Element

Usually Ships In 24-48 Hours

Performance Data
Micron Rating: 20.00 NOMINAL

Beta Rating: N/A

Collapse Pressure Rating: 75 PSID

Maximum Temperature: 225 F

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID

Additional Notes: BY-PASS VALVE = 20 PSID

Dimensional Specifications
Outer Diameter, Top: 5.35 IN (135.89 MM)

Outer Diameter, Bottom: 5.35 IN (135.89 MM)

Inner Diameter, Top:

Inner Diameter, Bottom:

Length: 6.00 IN (152.40 MM)

Thread: 1 1/8-16 UN2B

Physical Specifications
Handle: NONE

Seal Material: BUNA-N

Type of Adhesive:

Type of Endcap: PLATED STEEL

Center Tube: PLATED STEEL

Type of Media: PAPER

Filter Area: SQ.IN.

Plating:

Outer Jacket: YES

Configuration: SINGLE OPEN END

Packaging Specifications
Number per Carton: 1

Carton Weight: 21.90 LB (9.93 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
