91740| Big A | Allison Transmission Kit

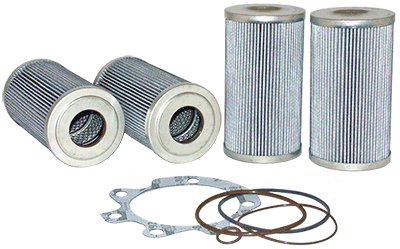

***Image may vary***

Big A | 91740 | Allison Transmission Kit | OFS # 97-05-1627

  • $92.69


Performance Data
Micron Rating: 0.00 ABSOLUTE

Beta Rating: N/A

Collapse Pressure Rating: 75 PSID

Maximum Temperature: 225 F

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 50 PSID



Dimensional Specifications
Outer Diameter, Top: 3.00 IN (76.20 MM)

Outer Diameter, Bottom: 3.00 IN (76.20 MM)

Inner Diameter, Top: 1.53 IN (38.86 MM)

Inner Diameter, Bottom:

Length: 5.90 IN (149.86 MM)

Thread: NONE



Physical Specifications
Handle: NONE

Seal Material: BUNA-N

Type of Adhesive: EPOXY

Type of Endcap: PLATED STEEL

Center Tube: PLATED STEEL

Type of Media: MICROGLASS

Filter Area: SQ.IN.

Plating: ELECTOTIN PLATED

Outer Jacket: NONE - NONE

Configuration: SINGLE OPEN END



Packaging Specifications
Number per Carton: 1

Carton Weight: **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
