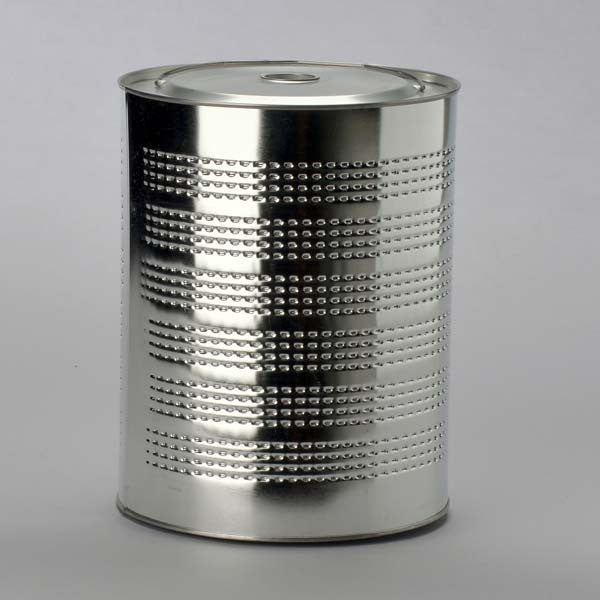

91540 | Baldwin-Lima-Ham | Lube Filter Element
***Image may vary***

91540 | Baldwin-Lima-Ham | OFS # 97-28-0585

  • $17.70


Lube Filter Element

Usually Ships In 24-48 Hours

Performance Data
Micron Rating: 10.00 25

Beta Rating: N/A

Collapse Pressure Rating:

Maximum Temperature: 225 F

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID

Additional Notes: USED IN LUBER-FINER 500 SIZE HOUSING.



Dimensional Specifications
Outer Diameter, Top: 7.72 IN (196.09 MM)

Outer Diameter, Bottom: 7.72 IN (196.09 MM)

Inner Diameter, Top: 1.10 IN (27.94 MM)

Inner Diameter, Bottom:

Length: 10.06 IN (255.52 MM)

Thread: NONE



Physical Specifications
Handle: YES

Seal Material: NONE

Type of Adhesive: NONE

Type of Endcap: ALUMINUM

Center Tube: ALUMINUM

Type of Media: PAPER

Filter Area: SQ.IN.

Plating: NONE

Outer Jacket: YES

Configuration: SINGLE OPEN END



Packaging Specifications
Number per Carton: 1

Carton Weight: 4.58 LB (2.08 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
