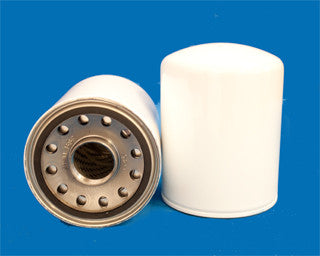

012391 | Air Supply | Compressor Spin-On |
Performance Data
Micron Rating: 10.00 NOMINAL
Beta Rating: B17=200
Collapse Pressure Rating: 348 PSID
Maximum Temperature: 275 F
Direction of Flow: OUTSIDE->IN
Recommended Changeout Differential Pressure: 20 PSID
Additional Notes: MAX WORKING PRESSURE: 175 PSI
Dimensional Specifications
(A) Outer Diameter, Top: 3.70 IN (93.98 MM)
(B) Outer Diameter, Bottom: 3.70 IN (93.98 MM)
(C) Inner Diameter, Top:
(D) Inner Diameter, Bottom:
(E) Length: 5.78 IN (146.81 MM)
(F) Thread: 1"-12 UNF
Physical Specifications
Handle: NONE
Seal Material: BUNA-N
Type of Adhesive: PLASTISOL
Type of Endcap: PLATED STEEL
Center Tube: PLATED STEEL
Type of Media: PAPER
Filter Area: SQ.IN.
Plating: ELECTROTIN PLATED
Outer Jacket: YES - METAL
Configuration: SINGLE OPEN END
Packaging Specifications
Number per Carton: 12
Carton Weight: 15.00 LB (6.80 KG) ***All Online Filter Supply replacement parts are equivalent to or interchangeable with original manufacture parts, Names and part # used for cross reference only.***
