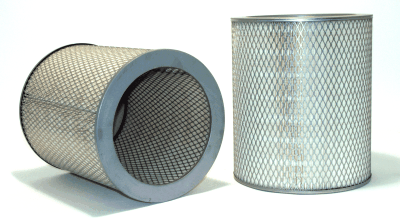

97915 | WIX | OFS # 97-22-0228

Lead Time: Usually Ships In 24-28 Hours

Performance Data
Micron Rating: 2.00 NOMINAL

Beta Rating: N/A

Collapse Pressure Rating: NOT RATED

Maximum Temperature: 225 F

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID

Dimensional Specifications
Outer Diameter, Top: 3.88 IN (98.55 MM)

Outer Diameter, Bottom: 3.88 IN (98.55 MM)

Inner Diameter, Top: 2.38 IN (60.45 MM)

Inner Diameter, Bottom: 2.38 IN (60.45 MM)

Length: 4.00 IN (101.60 MM)

Thread: NONE

Physical Specifications
Handle: NONE

Seal Material: NONE

Type of Adhesive: PLASTISOL

Type of Endcap: PLATED STEEL

Center Tube: PLATED STEEL

Type of Media: PAPER

Filter Area: SQ.IN.

Plating: ELECTROTIN PLATED

Outer Jacket: YES - METAL

Configuration: DOUBLE OPEN END

Packaging Specifications
Number per Carton: 1

Carton Weight:
