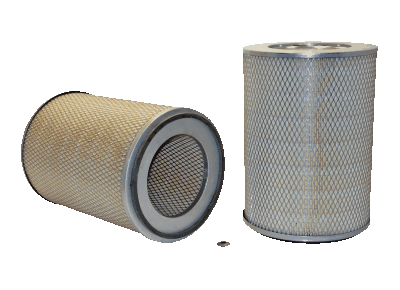

546598 | WIX | OFS # 97-22-0458

Lead Time: Usually Ships In 24-28 Hours

Performance Data
Micron Rating: 15.00 NOMINAL

Beta Rating:

Collapse Pressure Rating:

Maximum Temperature:

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID

Dimensional Specifications
Outer Diameter, Top: 11.50 IN (292.10 MM)

Outer Diameter, Bottom: 11.50 IN (292.10 MM)

Inner Diameter, Top: 7.00 IN (177.80 MM)

Inner Diameter, Bottom: 0.39 IN (9.91 MM)

Length: 15.75 IN (400.05 MM)

Thread: NONE

Physical Specifications
Handle: NONE

Seal Material: BUNA-N

Type of Adhesive:

Type of Endcap: PLATED STEEL

Center Tube: STEEL

Type of Media: PAPER

Filter Area: SQ.IN.

Plating:

Outer Jacket: YES

Configuration: SINGLE W BOLT HOLE

Packaging Specifications
Number per Carton: 1

Carton Weight: 9.00 LB (4.08 KG)
