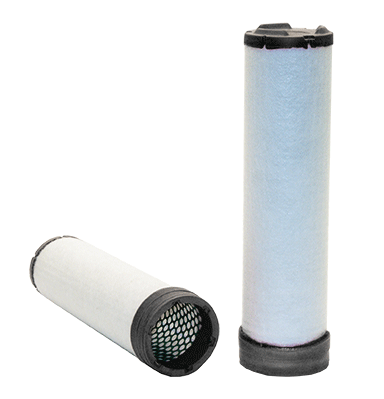

546569 | WIX | OFS # 97-22-4406

Lead Time: Usually Ships In 24-28 Hours

Performance Data
Micron Rating: 0.00

Beta Rating:

Collapse Pressure Rating:

Maximum Temperature:

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID

Dimensional Specifications
Outer Diameter, Top: 3.66 IN (92.96 MM)

Outer Diameter, Bottom: 3.43 IN (87.12 MM)

Inner Diameter, Top: 2.84 IN (72.14 MM)

Inner Diameter, Bottom:

Length: 13.29 IN (337.57 MM)

Thread: NONE

Physical Specifications
Handle: NONE

Seal Material: MOLDED

Type of Adhesive:

Type of Endcap: PLATED STEEL

Center Tube: STEEL

Type of Media: BLUE FELT

Filter Area: SQ.IN.

Plating:

Outer Jacket: YES

Configuration: SINGLE OPEN END

Packaging Specifications
Number per Carton: 1

Carton Weight: 2.00 LB (0.91 KG)
