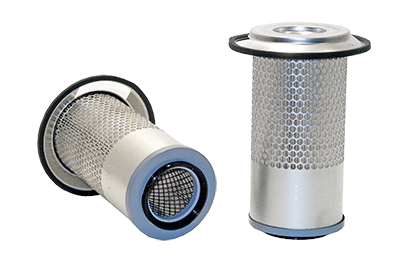

546513 | WIX | OFS # 97-22-2045

Lead Time: Usually Ships In 24-28 Hours

Performance Data
Micron Rating: 15.00

Beta Rating:

Collapse Pressure Rating:

Maximum Temperature:

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID

Dimensional Specifications
Outer Diameter, Top: 6.16 IN (156.46 MM)

Outer Diameter, Bottom: 4.27 IN (108.46 MM)

Inner Diameter, Top: 2.21 IN (56.13 MM)

Inner Diameter, Bottom:

Length: 8.95 IN (227.33 MM)

Thread: NONE

Physical Specifications
Handle: NONE

Seal Material: BUNA-N

Type of Adhesive:

Type of Endcap: PLATED STEEL

Center Tube: STEEL

Type of Media: PAPER

Filter Area: SQ.IN.

Plating:

Outer Jacket: YES

Configuration: SINGLE OPEN END

Packaging Specifications
Number per Carton: 1

Carton Weight: 2.00 LB (0.91 KG)
