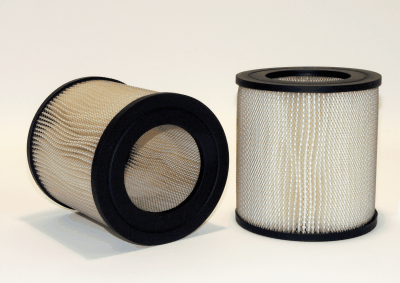

546225 | WIX | OFS # 97-28-9233

Lead Time: Please Call

Performance Data
Micron Rating: 0.00 NOMINAL

Beta Rating: N/A

Collapse Pressure Rating:

Maximum Temperature:

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID

Dimensional Specifications
Outer Diameter, Top: 5.85 IN (148.59 MM)

Outer Diameter, Bottom: 5.85 IN (148.59 MM)

Inner Diameter, Top: 3.46 IN (87.88 MM)

Inner Diameter, Bottom: 3.46 IN (87.88 MM)

Length: 5.98 IN (151.89 MM)

Thread: NONE

Physical Specifications
Handle: NONE

Seal Material: MOLDED

Type of Adhesive: EPOXY

Type of Endcap: PLATED STEEL

Center Tube: PLATED STEEL

Type of Media: PAPER

Filter Area: SQ.IN.

Plating: NONE

Outer Jacket: NONE - NONE

Configuration: DOUBLE OPEN END

Packaging Specifications
Number per Carton: 1

Carton Weight:
