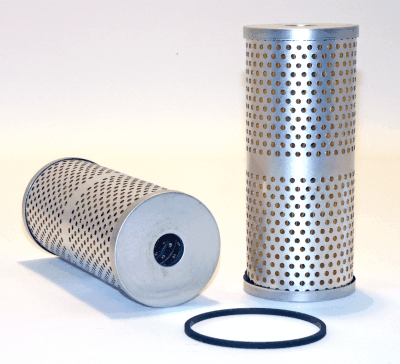

546179 | WIX | OFS # 97-22-0717

Lead Time: Usually Ships In 24-28 Hours

Performance Data
Micron Rating: 15.00 NOMINAL

Beta Rating: N/A

Collapse Pressure Rating: NOT RATED

Maximum Temperature: 300 F

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID

Dimensional Specifications
Outer Diameter, Top: 5.75 IN (146.05 MM)

Outer Diameter, Bottom: 5.75 IN (146.05 MM)

Inner Diameter, Top: 3.50 IN (88.90 MM)

Inner Diameter, Bottom: 3.50 IN (88.90 MM)

Length: 4.94 IN (125.48 MM)

Thread:

Physical Specifications
Handle: NONE

Seal Material: MOLDED

Type of Adhesive: PLASTISOL

Type of Endcap: PLASTISOL

Center Tube: CARBON STEEL

Type of Media: PAPER

Filter Area: N/A

Plating:

Outer Jacket: YES

Configuration: DOUBLE OPEN END

Packaging Specifications
Number per Carton: 1

Carton Weight: 5.70 LB (2.59 KG)
