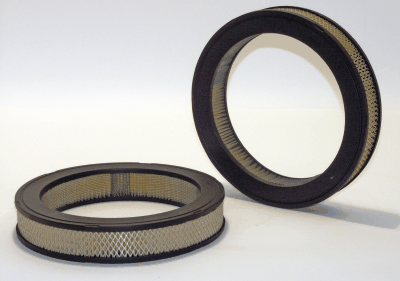

546087 | WIX | OFS # 97-22-2040

Lead Time: Please Call

Performance Data
Micron Rating: 0.00

Beta Rating:

Collapse Pressure Rating:

Maximum Temperature:

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID

Dimensional Specifications
Outer Diameter, Top: 9.65 IN (245.11 MM)

Outer Diameter, Bottom: 9.65 IN (245.11 MM)

Inner Diameter, Top: 5.25 IN (133.35 MM)

Inner Diameter, Bottom: 0.42 IN (10.67 MM)

Length: 15.57 IN (395.48 MM)

Thread: NONE

Physical Specifications
Handle: NONE

Seal Material:

Type of Adhesive:

Type of Endcap: PLATED STEEL

Center Tube:

Type of Media:

Filter Area: SQ.IN.

Plating:

Outer Jacket: YES

Configuration: SINGLE OPEN/BOLT HOL

Packaging Specifications
Number per Carton: 1

Carton Weight: 7.00 LB (3.18 KG)
