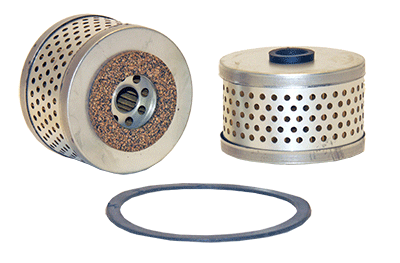

542760 | WIX | OFS # 97-22-0465
Lead Time: Usually Ships In 24-28 Hours
Performance Data
Micron Rating: 15.00 NOMINAL
Beta Rating: N/A
Collapse Pressure Rating: N/A
Maximum Temperature: 250 F
Direction of Flow: INSIDE->OUT
Recommended Changeout Differential Pressure: 20 PSID
Dimensional Specifications
Outer Diameter, Top: 12.09 IN (307.09 MM)
Outer Diameter, Bottom:
Inner Diameter, Top: 0.53 IN (13.46 MM)
Inner Diameter, Bottom: 7.72 IN (196.09 MM)
Length: 13.00 IN (330.20 MM)
Thread: NONE
Physical Specifications
Handle: NONE
Seal Material: NONE
Type of Adhesive: PLASTISOL
Type of Endcap: PLATED STEEL
Center Tube: PLATED STEEL
Type of Media: PAPER
Filter Area: SQ.IN.
Plating: NONE
Outer Jacket: YES - METAL
Configuration: SINGLE OPEN/ BOLT H
Packaging Specifications
Number per Carton: 1
Carton Weight: 7.30 LB (3.31 KG)
Intake Air Filter Element
