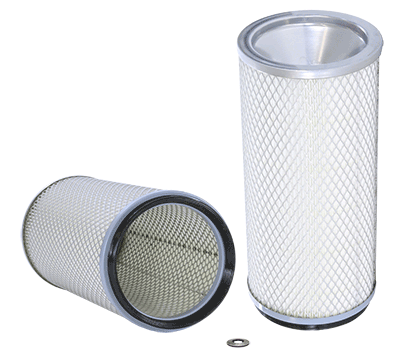

42521 | WIX | OFS # 97-22-0870

Lead Time: Usually Ships In 24-28 Hours

Performance Data
Micron Rating: 15.00 NOMINAL

Beta Rating:

Collapse Pressure Rating:

Maximum Temperature:

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID

Dimensional Specifications
Outer Diameter, Top: 5.72 IN (145.29 MM)

Outer Diameter, Bottom: 5.72 IN (145.29 MM)

Inner Diameter, Top: 4.56 IN (115.82 MM)

Inner Diameter, Bottom: 0.65 IN (16.51 MM)

Length: 12.50 IN (317.50 MM)

Thread: NONE

Physical Specifications
Handle: NONE

Seal Material:

Type of Adhesive:

Type of Endcap: PLATED STEEL

Center Tube: STEEL

Type of Media: PAPER

Filter Area: SQ.IN.

Plating:

Outer Jacket: YES

Configuration: SINGLE / BOLT HOLE

Packaging Specifications
Number per Carton: 1

Carton Weight: 2.10 LB (0.95 KG)
