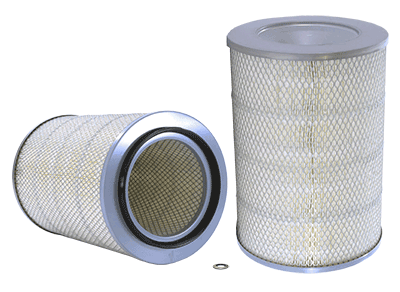

42520 | WIX | OFS # 97-22-0519

Lead Time: Usually Ships In 24-28 Hours

Performance Data
Micron Rating: 15.00 NOMINAL

Beta Rating:

Collapse Pressure Rating:

Maximum Temperature:

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID

Dimensional Specifications
Outer Diameter, Top: 9.13 IN (231.90 MM)

Outer Diameter, Bottom:

Inner Diameter, Top: 0.90 IN (22.86 MM)

Inner Diameter, Bottom: 5.78 IN (146.81 MM)

Length: 13.50 IN (342.90 MM)

Thread: NONE

Physical Specifications
Handle: NONE

Seal Material:

Type of Adhesive: N/A

Type of Endcap: STEEL

Center Tube: STEEL

Type of Media: PAPER

Filter Area: SQ.IN.

Plating: N/A

Outer Jacket: YES

Configuration:

Packaging Specifications
Number per Carton: 1

Carton Weight: 5.00 LB (2.27 KG)
