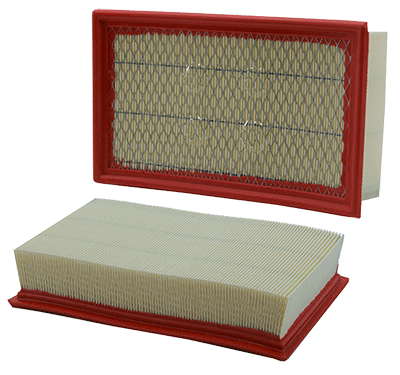

42484 | WIX | Panel Air Filter Element | OFS # 97-33-7926

Lead Time: Please Call

Performance Data
Micron Rating: 15.00

Beta Rating:

Collapse Pressure Rating:

Maximum Temperature:

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID

Dimensional Specifications
Outer Diameter, Top: 7.09 IN (180.09 MM)

Outer Diameter, Bottom:

Inner Diameter, Top: 2.16 IN (54.86 MM)

Inner Diameter, Bottom:

Length: 11.50 IN (292.10 MM)

Thread: NONE

Physical Specifications
Handle: NONE

Seal Material: NONE

Type of Adhesive:

Type of Endcap:

Center Tube: NONE

Type of Media: PAPER

Filter Area: SQ.IN.

Plating:

Outer Jacket: YES

Configuration: N/A PANEL AIR ELEMEN

Packaging Specifications
Number per Carton: 1

Carton Weight: 3.00 LB (1.36 KG)
