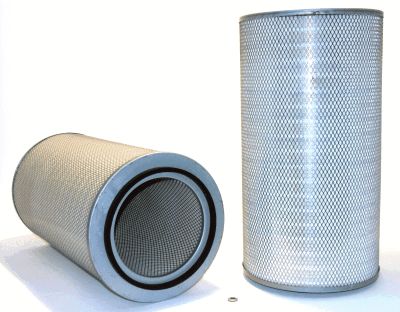

42481 | WIX | OFS # 97-22-1966

Lead Time: Usually Ships In 24-28 Hours

Performance Data
Micron Rating: 15.00

Beta Rating:

Collapse Pressure Rating:

Maximum Temperature:

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID

Dimensional Specifications
Outer Diameter, Top: 12.91 IN (327.91 MM)

Outer Diameter, Bottom: 12.89 IN (327.41 MM)

Inner Diameter, Top: 8.56 IN (217.42 MM)

Inner Diameter, Bottom: 0.41 IN (10.41 MM)

Length: 24.35 IN (618.49 MM)

Thread: NONE

Physical Specifications
Handle: NONE

Seal Material:

Type of Adhesive:

Type of Endcap: PLATED STEEL

Center Tube: STEEL

Type of Media: PAPER

Filter Area: SQ.IN.

Plating:

Outer Jacket: YES

Configuration: SINGLE / BOLT HOLE

Packaging Specifications
Number per Carton: 1

Carton Weight: 14.20 LB (6.44 KG)
