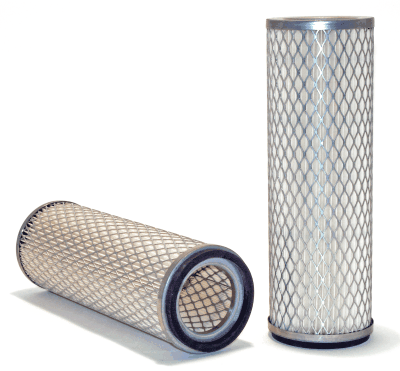

42397 | WIX | OFS # 97-22-1957

Lead Time: Please Call

Performance Data
Micron Rating: 0.00

Beta Rating:

Collapse Pressure Rating:

Maximum Temperature:

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID

Dimensional Specifications
Outer Diameter, Top: 3.78 IN (96.01 MM)

Outer Diameter, Bottom: 3.78 IN (96.01 MM)

Inner Diameter, Top: 0.63 IN (16.00 MM)

Inner Diameter, Bottom: 2.37 IN (60.20 MM)

Length: 11.47 IN (291.34 MM)

Thread: NONE

Physical Specifications
Handle: NONE

Seal Material:

Type of Adhesive:

Type of Endcap: PLATED STEEL

Center Tube: STEEL

Type of Media: PAPER

Filter Area: SQ.IN.

Plating:

Outer Jacket: YES

Configuration: SINGLE OPEN/BOLT HOL

Packaging Specifications
Number per Carton: 1

Carton Weight: 1.20 LB (0.54 KG)
