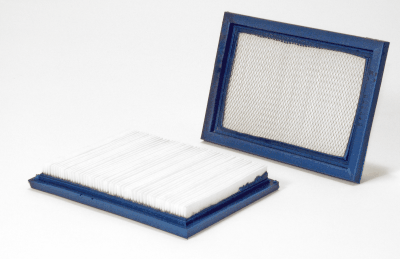

42360 | WIX | Panle Air Intake Filter | OFS # 97-22-4273

Lead Time: Please Call

Performance Data
Micron Rating: 15.00

Beta Rating:

Collapse Pressure Rating:

Maximum Temperature:

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID

Dimensional Specifications
Outer Diameter, Top: 4.44 IN (112.78 MM)

Outer Diameter, Bottom:

Inner Diameter, Top: 0.81 IN (20.57 MM)

Inner Diameter, Bottom:

Length: 6.31 IN (160.27 MM)

Thread: NONE

Physical Specifications
Handle: NONE

Seal Material: NONE

Type of Adhesive:

Type of Endcap: PLASTISOL

Center Tube: NONE

Type of Media: PAPER

Filter Area: SQ.IN.

Plating:

Outer Jacket: YES

Configuration: N/A MICROLITE PANEL

Packaging Specifications
Number per Carton: 1

Carton Weight: 2.00 LB (0.91 KG)
