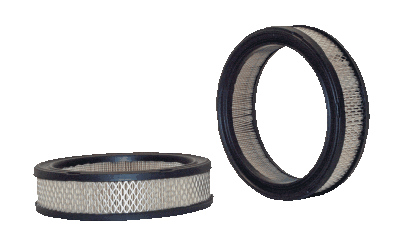

42296 | WIX | OFS # 97-28-1497

Lead Time: Usually Ships In 24-28 Hours

Performance Data
Micron Rating: 0.00

Beta Rating:

Collapse Pressure Rating:

Maximum Temperature:

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID

Dimensional Specifications
Outer Diameter, Top: 7.00 IN (177.80 MM)

Outer Diameter, Bottom: 7.00 IN (177.80 MM)

Inner Diameter, Top: 5.57 IN (141.48 MM)

Inner Diameter, Bottom: 5.57 IN (141.48 MM)

Length: 1.81 IN (45.97 MM)

Thread: NONE

Physical Specifications
Handle: NONE

Seal Material:

Type of Adhesive:

Type of Endcap: MOLDED END CAPS

Center Tube:

Type of Media:

Filter Area: SQ.IN.

Plating:

Outer Jacket: NONE

Configuration: DOUBLE OPEN END

Packaging Specifications
Number per Carton: 1

Carton Weight: 3.50 LB (1.59 KG)
