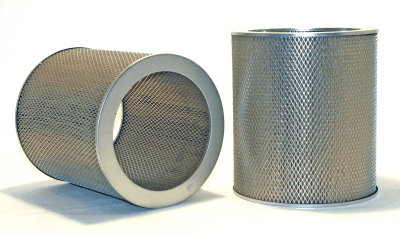

42206 | WIX | OFS # 97-22-0431

Lead Time: Usually Ships In 24-28 Hours

Performance Data
Micron Rating: 15.00 NOMINAL

Beta Rating: N/A

Collapse Pressure Rating: NOT RATED

Maximum Temperature: 300 F

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID

Dimensional Specifications
Outer Diameter, Top: 10.25 IN (260.35 MM)

Outer Diameter, Bottom: 10.25 IN (260.35 MM)

Inner Diameter, Top: 7.94 IN (201.68 MM)

Inner Diameter, Bottom: 7.94 IN (201.68 MM)

Length: 11.50 IN (292.10 MM)

Thread: NONE

Physical Specifications
Handle: NONE

Seal Material: NONE

Type of Adhesive: PLASTISOL

Type of Endcap: PLATED STEEL

Center Tube: PLATED STEEL

Type of Media: PAPER

Filter Area: 117 SQ.FT.

Plating: ELECTROTIN PLATED

Outer Jacket: YES - METAL

Configuration: DOUBLE OPEN END

Packaging Specifications
Number per Carton: 1

Carton Weight: 4.70 LB (2.13 KG)
