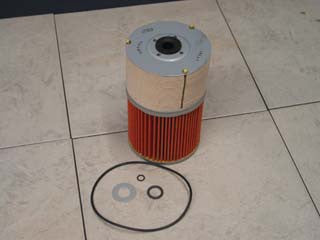

3124053053 | Mitsubishi Replacement |

Lube Filter Element

Performance Data
Micron Rating: 0.00

Beta Rating:

Collapse Pressure Rating:

Maximum Temperature:

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID

Dimensional Specifications
(A) Outer Diameter, Top: 4.14 IN (105.16 MM)

(B) Outer Diameter, Bottom: 4.14 IN (105.16 MM)

(C) Inner Diameter, Top: 0.57 IN (14.48 MM)

(D) Inner Diameter, Bottom: 1.92 IN (48.77 MM)

(E) Length: 6.79 IN (172.47 MM)

(F) Thread: NONE

Physical Specifications
Handle: NONE

Seal Material:

Type of Adhesive:

Type of Endcap: PLATED STEEL

Center Tube:

Type of Media:

Filter Area: SQ.IN.

Plating:

Outer Jacket: YES

Configuration: SINGLE OPEN / BOLT H

Packaging Specifications
Number per Carton: 1

Carton Weight: 19.00 LB (8.62 KG) ***All Online Filter Supply replacement parts are equivalent to or interchangeable with original manufacture parts, Names and part # used for cross reference only.***
