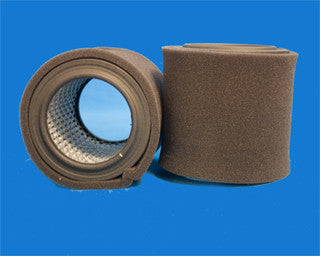

1222451 | Gen. Pneumatics | Air Coalescer |
Performance Data
Micron Rating: 5.00 ABSOLUTE
Beta Rating: N/A
Collapse Pressure Rating: NOT RATED
Maximum Temperature: 225 F
Direction of Flow: OUTSIDE->IN
Recommended Changeout Differential Pressure: 20 PSID
Additional Notes: REPLACES SOLBERG MFG. INC. 66343 P/N 19P
Dimensional Specifications
(A) Outer Diameter, Top: 4.37 IN (111.00 MM)
(B) Outer Diameter, Bottom: 4.37 IN (111.00 MM)
(C) Inner Diameter, Top: 3.00 IN (76.20 MM)
(D) Inner Diameter, Bottom: 3.00 IN (76.20 MM)
(E) Length: 4.77 IN (121.16 MM)
(F) Thread: NONE
Physical Specifications
Handle: NONE
Seal Material: MOLDED
Type of Adhesive: PLASTISOL
Type of Endcap: MOLDED
Center Tube: PLATED STEEL
Type of Media: POLYESTER
Filter Area: SQ.IN.
Plating: NONE
Outer Jacket: YES - SPONGE
Configuration: DOUBLE OPEN END
Packaging Specifications
Number per Carton: 1
Carton Weight: 1.00 LB (0.45 KG) ***All Online Filter Supply replacement parts are equivalent to or interchangeable with original manufacture parts, Names and part # used for cross reference only.***
