A121C25 | 3B Filters | Spin-On Filter Element

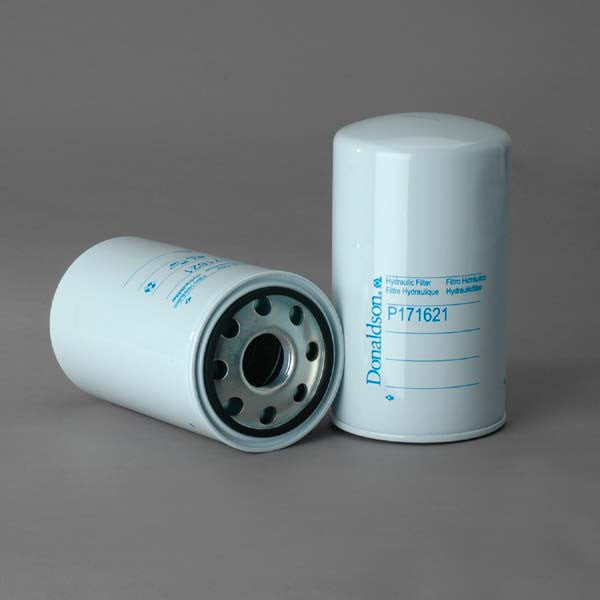

***Image may vary***

A121C25 | 3B Filters | OFS # 97-25-0069

  • $20.20


Spin-On Filter Element Usually Ships In 24-48 Hours

Performance Data
Micron Rating: 10.00 NOMINAL

Beta Rating: N/A

Collapse Pressure Rating: 75 PSID

Maximum Temperature: 225 F

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID



Dimensional Specifications
Outer Diameter, Top: 5.06 IN (128.52 MM)

Outer Diameter, Bottom: 5.06 IN (128.52 MM)

Inner Diameter, Top:

Inner Diameter, Bottom:

Length: 7.00 IN (177.80 MM)

Thread: 1 1/4"-11



Physical Specifications
Handle: NONE

Seal Material: BUNA-N

Type of Adhesive: PLASTISOL

Type of Endcap: PLATED STEEL

Center Tube: PLATED STEEL

Type of Media: PAPER

Filter Area: SQ.IN.

Plating: ELECTROTIN PLATED

Outer Jacket: YES - METAL

Configuration: SINGLE OPEN END



Packaging Specifications
Number per Carton: 6

Carton Weight: 15.00 LB (6.80 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
