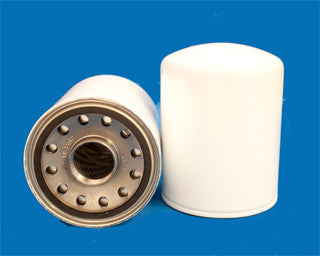

90E10CSN | 3B Filters |

Spin-On Element Replacement In Stock

Performance Data
Micron Rating: 7.00

Beta Rating: N/A

Collapse Pressure Rating: 80 PSID

Maximum Temperature: 175 F

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID

Additional Notes: COMPRESSOR SPIN-ON, MAX. WORKING PRESSURE = 100 PSI

Dimensional Specifications
(A) Outer Diameter, Top: 5.00 IN (127.00 MM)

(B) Outer Diameter, Bottom: 5.00 IN (127.00 MM)

(C) Inner Diameter, Top:

(D) Inner Diameter, Bottom:

(E) Length: 7.00 IN (177.80 MM)

(F) Thread: 1.25-11BS

Physical Specifications
Handle: NONE

Seal Material: BUNA-N

Type of Adhesive: EPOXY

Type of Endcap: N.A.

Center Tube: PLATED STEEL

Type of Media: MICROGLASS

Filter Area: 3.8 SQ.FT.

Plating: ELECTROTIN PLATED

Outer Jacket: YES

Configuration: SINGLE OPEN END

Packaging Specifications
Number per Carton: 6

Carton Weight: 18.00 LB (8.16 KG) ***All Online Filter Supply replacement parts are equivalent to or interchangeable with original manufacture parts, Names and part # used for cross reference only.***
