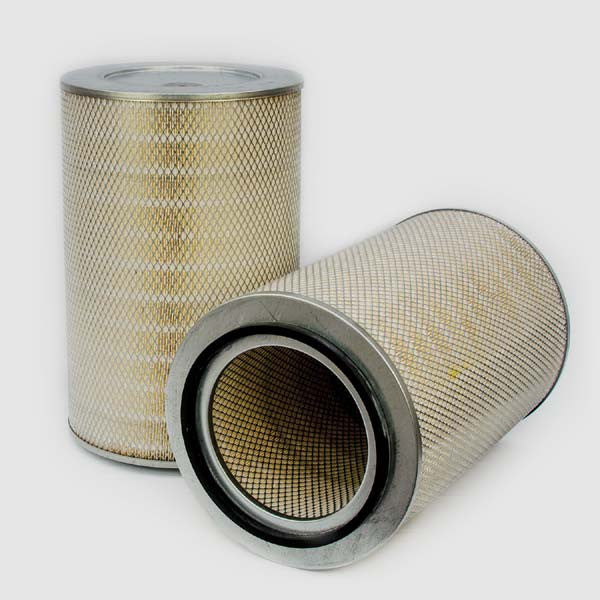

640054 | 3B Filters | Intake Air Filter Element
***Image may vary***

640054 | 3B Filters | OFS # 97-22-0443

  • $115.99


Usually Ships In 24-48 Hours

Performance Data
Micron Rating:  15.00 NOMINAL

Beta Rating:

Collapse Pressure Rating:

Maximum Temperature:

Direction of Flow:  OUTSIDE->IN

Recommended Changeout Differential Pressure:  20 PSID



Dimensional Specifications
Outer Diameter, Top:  11.94 IN   (303.28 MM)

Outer Diameter, Bottom:  11.94 IN   (303.28 MM)

Inner Diameter, Top:  7.53 IN   (191.26 MM)

Inner Diameter, Bottom:  0.41 IN   (10.41 MM)

Length:  18.06 IN   (458.72 MM)

Thread:  NONE



Physical Specifications
Handle:  NONE

Seal Material:  SPONGE

Type of Adhesive:

Type of Endcap:  PLATED STEEL

Center Tube:  STEEL

Type of Media:  PAPER

Filter Area:  N/A

Plating:  N/A

Outer Jacket:  YES

Configuration:  SINGLE OPEN W/B.HOLE



Packaging Specifications
Number per Carton:  1

Carton Weight:  11.00 LB   (4.99 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**

Intake Air Filter Element
