WF10429 | WIX | OFS # 97-28-9719

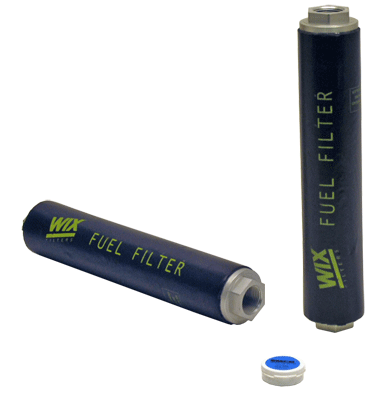

In Hose Fuel Filter Assembly
Lead Time: 2 WEEK LEAD TIME
Performance Data
Micron Rating: 7.00
Beta Rating: N/A
Collapse Pressure Rating:
Maximum Temperature:
Direction of Flow: OUTSIDE->IN
Recommended Changeout Differential Pressure: 20 PSID
Dimensional Specifications
Outer Diameter, Top: 2.19 IN (55.63 MM)
Outer Diameter, Bottom: 2.19 IN (55.63 MM)
Inner Diameter, Top: 0.75 IN (19.05 MM)
Inner Diameter, Bottom: 0.75 IN (19.05 MM)
Length: 11.00 IN (279.40 MM)
Thread: 3/4" FEMALE
Physical Specifications
Handle: NONE
Seal Material:
Type of Adhesive:
Type of Endcap: PLATED STEEL
Center Tube:
Type of Media: PAPER
Filter Area: SQ.IN.
Plating:
Outer Jacket: YES
Configuration:
Packaging Specifications
Number per Carton: 1
Carton Weight: 2.00 LB (0.91 KG)
