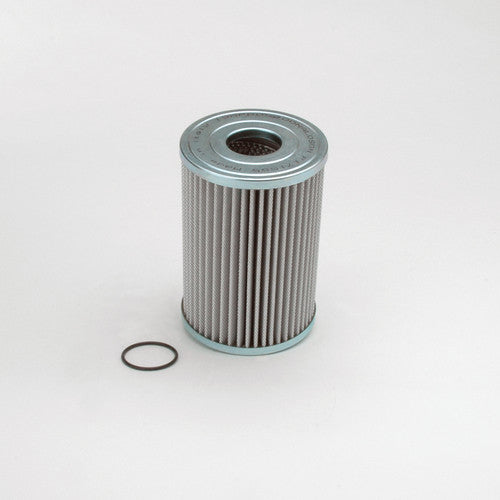

R151G10B| 3B Filters | Filter Element | OFS # 97-33-5782

Performance Data
Micron Rating:  10.00 ABSOLUTE

Beta Rating:

Collapse Pressure Rating:

Maximum Temperature:  212 F

Direction of Flow:  OUTSIDE->IN

Recommended Changeout Differential Pressure:  20 PSID

Dimensional Specifications
Outer Diameter, Top:  5.12 IN   (130.05 MM)

Outer Diameter, Bottom:  5.12 IN   (130.05 MM)

Inner Diameter, Top:  2.05 IN   (52.07 MM)

Inner Diameter, Bottom:

Length:  7.87 IN   (199.90 MM)

Thread:

Physical Specifications
Handle:  NONE

Seal Material:  BUNA-N

Type of Adhesive:

Type of Endcap:  PLATED STEEL

Center Tube:  PLATED STEEL

Type of Media:  MICROGLASS

Filter Area:  823 SQ.IN.

Plating:

Outer Jacket:  NONE

Configuration:  SINGLE OPEN END

Packaging Specifications
Number per Carton:  1

Carton Weight:  2.20 LB   (1.00 KG) ***All Online Filter Supply replacement products are equivalent to or interchangeable with original manufacture parts***
