PX135| Pipercross | OFS # 97-22-0810

Performance Data
Micron Rating:  15.00 NOMINAL

Beta Rating:

Collapse Pressure Rating:  NOT RATED

Maximum Temperature:  300 F

Direction of Flow:  OUTSIDE->IN

Recommended Changeout Differential Pressure:  20 PSID

Dimensional Specifications
Outer Diameter, Top:  10.41 IN   (264.41 MM)

Outer Diameter, Bottom:

Inner Diameter, Top:  0.90 IN   (22.86 MM)

Inner Diameter, Bottom:  6.03 IN   (153.16 MM)

Length:  20.50 IN   (520.70 MM)

Thread:

Physical Specifications
Handle:  NONE

Seal Material:

Type of Adhesive:

Type of Endcap:  PLATED STEEL

Center Tube:

Type of Media:  PAPER

Filter Area:  SQ.IN.

Plating:

Outer Jacket:  NONE

Configuration:

Packaging Specifications
Number per Carton:  1

Carton Weight:  7.80 LB   (3.54 KG) ***All Online Filter Supply replacement products are equivalent to or interchangeable with original manufacture parts***

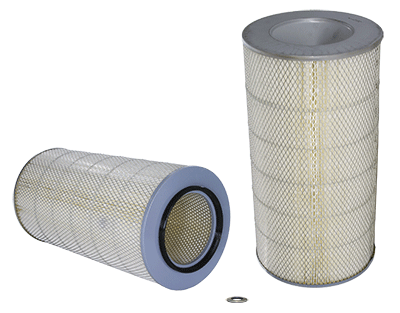

Intake Air Filter Element
