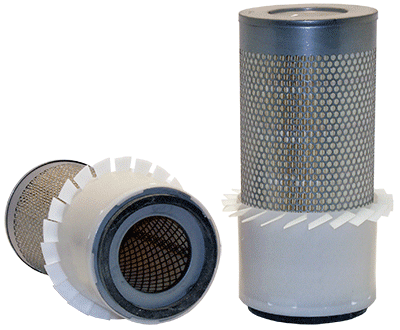

PX1030| Pipercross | OFS # 97-22-0978

Performance Data
Micron Rating:  15.00 NOMINAL

Beta Rating:

Collapse Pressure Rating:

Maximum Temperature:

Direction of Flow:  OUTSIDE->IN

Recommended Changeout Differential Pressure:  20 PSID

Dimensional Specifications
Outer Diameter, Top:  6.06 IN   (153.92 MM)

Outer Diameter, Bottom:

Inner Diameter, Top:  0.63 IN   (16.00 MM)

Inner Diameter, Bottom:  3.50 IN   (88.90 MM)

Length:  13.50 IN   (342.90 MM)

Thread:  NONE

Physical Specifications
Handle:  NONE

Seal Material:

Type of Adhesive:

Type of Endcap:  PLATED STEEL

Center Tube:

Type of Media:  PAPER

Filter Area:  SQ.IN.

Plating:

Outer Jacket:  YES

Configuration:

Packaging Specifications
Number per Carton:  1

Carton Weight:  2.90 LB   (1.32 KG) ***All Online Filter Supply replacement products are equivalent to or interchangeable with original manufacture parts***

Intake Air Filter Element
