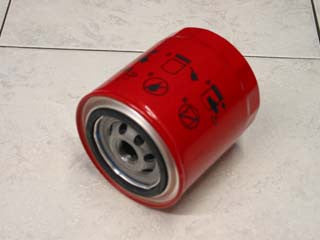

PM04136017 - ARGO FILTER  - Online Filter Supply Replacement Part # 97-25-0421
***Image may vary***

PM04136017 - ARGO FILTER - OFS # 97-25-0421

  • $12.17

AVAILABILITY - Usually ships in 24-48 hours

Performance Data
Micron Rating: 15.00

Beta Rating: N/A BPV 17.40

Collapse Pressure Rating:

Maximum Temperature:

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID

Dimensional Specifications
Outer Diameter, Top: 3.68 IN (93.47 MM)

Outer Diameter, Bottom: 3.68 IN (93.47 MM)

Inner Diameter, Top:

Inner Diameter, Bottom:

Length: 3.62 IN (91.95 MM)

Thread: 3/4-16 UNF-2B

Physical Specifications
Handle: NONE

Seal Material:

Type of Adhesive: PLASTISOL

Type of Endcap: PLATED STEEL

Center Tube: STEEL

Type of Media: PAPER

Filter Area: SQ.IN.


Outer Jacket: YES

Configuration: SINGLE OPEN SPIN -ON

Packaging Specifications
Number per Carton: 1

Carton Weight: 12.20 LB (5.53 KG) **All Online Filter Supply replacement parts are"equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
