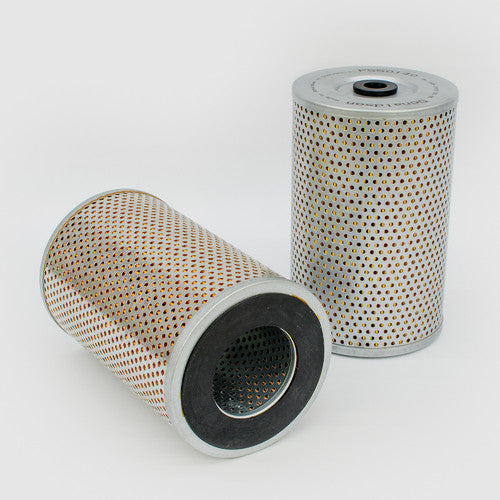

P779570 | DONALDSON | Pleated Paper Filter Element
***Image may vary***

P779570 | Donaldson | OFS # 97-01-0397

  • $15.60


Usually Ships In 24-48 Hours

Performance Data
Micron Rating: 25.00 NOMINAL

Beta Rating: N/A

Collapse Pressure Rating: 75 PSID

Maximum Temperature: 225 F

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID

Additional Notes: VICKERS #922789



Dimensional Specifications
Outer Diameter, Top: 4.62 IN (117.35 MM)

Outer Diameter, Bottom: 4.62 IN (117.35 MM)

Inner Diameter, Top: 0.53 IN (13.46 MM)

Inner Diameter, Bottom: 2.25 IN (57.15 MM)

Length: 7.00 IN (177.80 MM)

Thread: NONE



Physical Specifications
Handle: NONE

Seal Material: BUNA/VEL

Type of Adhesive: PLASTISOL

Type of Endcap: PLATED STEEL

Center Tube: PLATED STEEL

Type of Media: PAPER

Filter Area: SQ.IN.

Plating: ELECTROTIN PLATED

Outer Jacket: YES - METAL

Configuration: SINGLE OPEN WITH B/H



Packaging Specifications
Number per Carton: 12

Carton Weight: 15.00 LB (6.80 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
