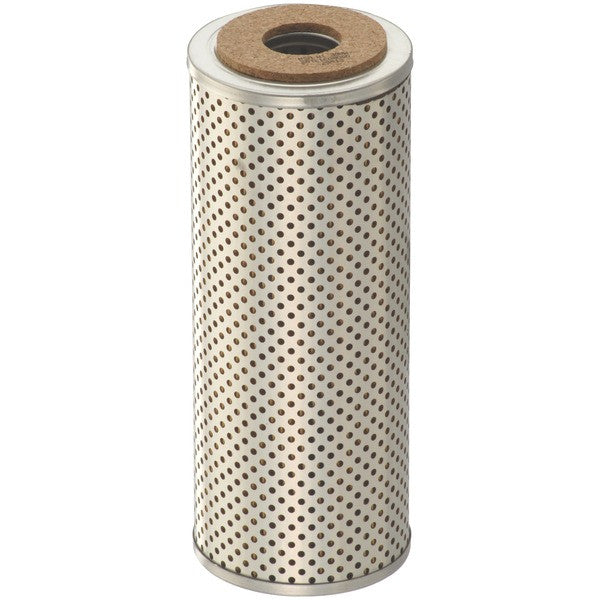

P779122 | DONALDSON | Pleated Paper Filter Element
***Image may vary***

P779122 | Donaldson | OFS # 97-01-0926

  • $13.56

Usually Ships In 24-48 Hours

Performance Data
Micron Rating: 0.00 NOMINAL

Beta Rating:

Collapse Pressure Rating:

Maximum Temperature: 225 F

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID

Dimensional Specifications
Outer Diameter, Top: 2.61 IN (66.29 MM)

Outer Diameter, Bottom: 2.61 IN (66.29 MM)

Inner Diameter, Top: 1.01 IN (25.65 MM)

Inner Diameter, Bottom: 1.01 IN (25.65 MM)

Length: 7.59 IN (192.79 MM)

Thread: NONE

Physical Specifications
Handle: NONE

Seal Material:

Type of Adhesive:

Type of Endcap: PLATED STEEL


Type of Media: PAPER

Filter Area: SQ.IN.


Outer Jacket: YES

Configuration: SINGLE OPEN SPIN ON

Packaging Specifications
Number per Carton: 1

Carton Weight: 6.20 LB (2.81 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
