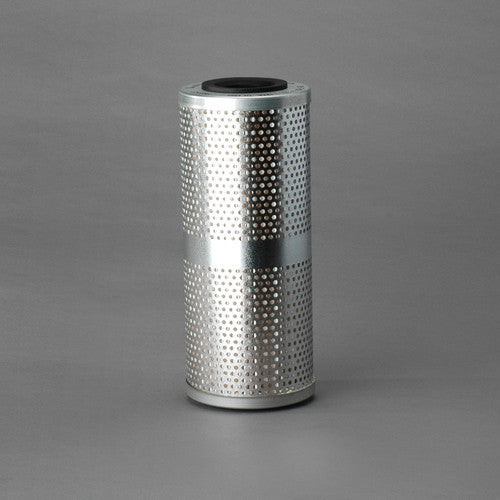

P569527 | DONALDSON | Water Absorption Element
***Image may vary***

P569527 | Donaldson | OFS # 97-03-0026

  • $34.83


Usually Ships In 24-48 Hours

Performance Data
Micron Rating: 10.00

Beta Rating: N/A

Collapse Pressure Rating: 75 PSID

Maximum Temperature: 225 F

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID



Dimensional Specifications
Outer Diameter, Top: 3.88 IN (98.55 MM)

Outer Diameter, Bottom: 3.88 IN (98.55 MM)

Inner Diameter, Top: 1.63 IN (41.40 MM)

Inner Diameter, Bottom: 1.63 IN (41.40 MM)

Length: 9.38 IN (238.25 MM)

Thread: NONE



Physical Specifications
Handle: NONE

Seal Material: BUNA-N

Type of Adhesive: POLYVINYLCHLORIDE

Type of Endcap: PLATED STEEL

Center Tube: PLATED STEEL

Type of Media: PAPER/CHEM

Filter Area: SQ.IN.

Plating: ELECTROTIN PLATED

Outer Jacket: YES

Configuration: DOUBLE OPEN END



Packaging Specifications
Number per Carton: 1

Carton Weight: 2.00 LB (0.91 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
