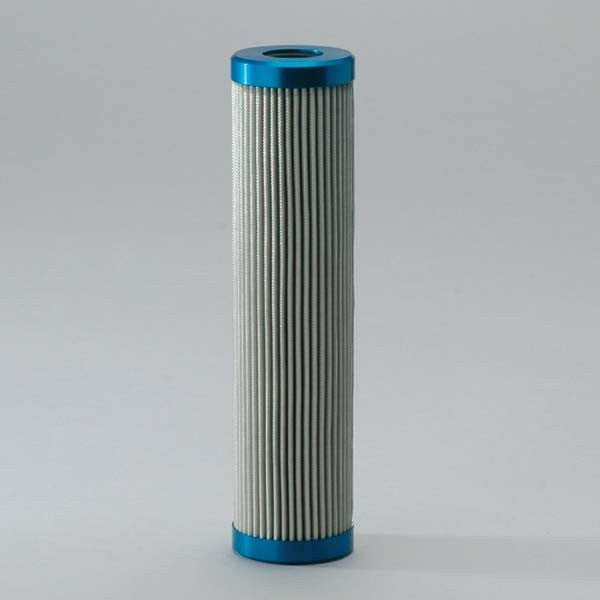

P566406 | Donaldson | Pleated Micro-Glass Filter Element
***Image may vary***

P566406 | Donaldson | OFS # 97-F9801-4K3B

  • $71.53


Usually Ships In 24-48 Hours

Performance Data
Micron Rating: 3.00 ABSOLUTE

Beta Rating: B3 = 200

Collapse Pressure Rating: 3000 PSID

Maximum Temperature: 250 F

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 50 PSID


Dimensional Specifications
Outer Diameter, Top: 2.00 IN (50.80 MM)

Outer Diameter, Bottom: 2.00 IN (50.80 MM)

Inner Diameter, Top: 1.00 IN (25.40 MM)

Inner Diameter, Bottom:

Length: 4.50 IN (114.30 MM)

Thread: NONE


Physical Specifications
Handle: NONE

Seal Material: BUNA-N

Type of Adhesive: EPOXY

Type of Endcap: PLATED STEEL

Center Tube: PLATED STEEL

Type of Media: MICROGLASS

Filter Area: 165 SQ.IN.

Plating: ZINC PLATED

Outer Jacket: NONE - NONE

Configuration: SINGLE OPEN END


Packaging Specifications
Number per Carton: 1

Carton Weight: 2.00 LB (0.91

Donaldson P56640 Pleated Micro-Glass Filter Element Cross References,

DONALDSON-DT980145UM

FAIREY ARLON-R981H0403A

FLEETGUARD-HF30613

HIFI FILTER - JURA FILTRATION-SH57158V, SH87222

HY PRO-HP81L42MB, HP81L42MV

HYDAC-HYCON-2060767 ,11304D03BH

LHA-LHE421BTA3HB

LUBER FINER-LH95058 ,LH95058V

OMT-CHP423F03YN

PALL-HC9801FDP4H ,HC9801FDP4Z, HC9801FUP4H ,HC9801FUP4Z

PARKER-935191Q

SCHROEDER-SBF98014Z3B ,SBF98014Z3V

TRIBOGUARD-980142UM ,980142UMV

UFI-EPB21NHA

WESTERN FILTER-E6014B1H03,E6014V1H03

ZINGA-S0403HN

**All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
