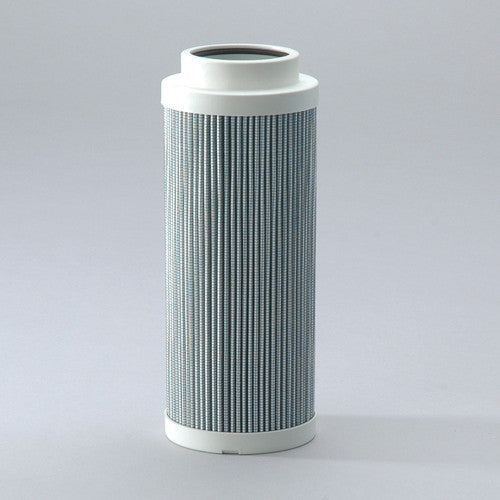

P566374 | DONALDSON | Pleated Microglass Filter Element
***Image may vary***

P566374 | Donaldson | OFS # 97-F9604-8K6B

  • $68.69

Usually Ships In 24-48 Hours

Performance Data
Micron Rating: 6.00 ABSOLUTE

Beta Rating: B6 = 200

Collapse Pressure Rating: 150 PSID

Maximum Temperature: 250 F

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 50 PSID

Dimensional Specifications
Outer Diameter, Top: 3.16 IN (80.26 MM)

Outer Diameter, Bottom: 3.16 IN (80.26 MM)

Inner Diameter, Top: 2.00 IN (50.80 MM)

Inner Diameter, Bottom:

Length: 7.98 IN (202.69 MM)

Thread: NONE

Physical Specifications
Handle: NONE

Seal Material: VITON

Type of Adhesive: EPOXY

Type of Endcap:

Center Tube: CORELESS

Type of Media: MICROGLASS

Filter Area: SQ.IN.


Outer Jacket: NONE - NONE

Configuration: SINGLE OPEN END

Packaging Specifications
Number per Carton: 6

Carton Weight: 1.00 LB (0.45 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
