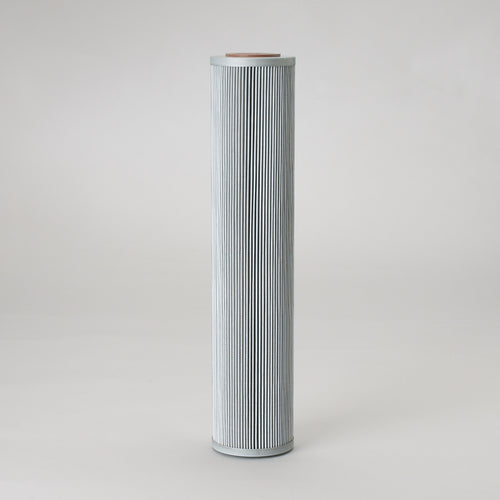

P566275 | Donaldson | Pleated Microglass Filter Element
***Image may vary***

P566275-Donaldson | OFS # 97-F9700-18K6B

  • $78.74



Filter Availability: Usually Ships In 24-48 Hours

Filter Type: Pleated Micro-Glass Filter Element


Performance Data

Micron Rating: 6.00 ABSOLUTE

Beta Rating: B6 = 200

Collapse Pressure Rating: 150 PSID

Maximum Temperature: 250 F

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 50 PSID



Dimensional Specifications
Outer Diameter, Top: 3.90 IN (99.06 MM)

Outer Diameter, Bottom: 3.90 IN (99.06 MM)

Inner Diameter, Top: 1.60 IN (40.64 MM)

Inner Diameter, Bottom: 1.60 IN (40.64 MM)

Length: 18.30 IN (464.82 MM)

Thread: NONE



Physical Specifications
Handle: NONE

Seal Material: BUNA-N

Type of Adhesive: EPOXY

Type of Endcap: PLATED STEEL

Center Tube: PLATED STEEL

Type of Media: MICROGLASS

Filter Area: SQ.IN.

Plating: ZINC PLATED

Outer Jacket: NONE - NONE

Configuration: DOUBLE OPEN END



Packaging Specifications
Number per Carton: 1

Carton Weight: 6.00 LB (2.72 KG)
