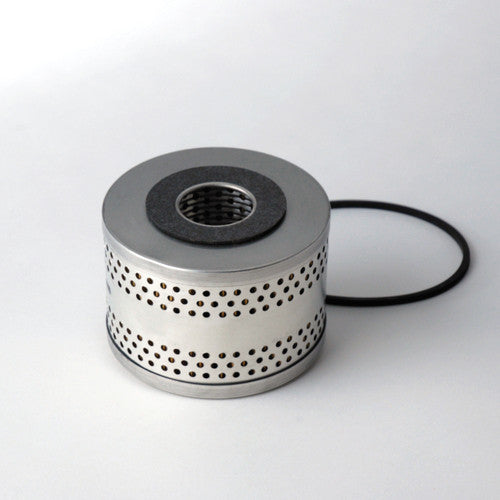

P551761 | Donaldson | OFS # 97-01-0821

Usually Ships In 24-48 Hours

Performance Data
Micron Rating: 0.00 NOMINAL

Beta Rating:

Collapse Pressure Rating:

Maximum Temperature: 225 F

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID

Dimensional Specifications
Outer Diameter, Top: 3.52 IN (89.41 MM)

Outer Diameter, Bottom: 3.52 IN (89.41 MM)

Inner Diameter, Top: 1.33 IN (33.78 MM)

Inner Diameter, Bottom:

Length: 2.82 IN (71.63 MM)

Thread: NONE

Physical Specifications
Handle: NONE

Seal Material:

Type of Adhesive:

Type of Endcap: PLATED STEEL

Center Tube: PLATED STEEL

Type of Media: PAPER

Filter Area: SQ.IN.

Plating:

Outer Jacket: YES

Configuration: SINGLE OPEN END

Packaging Specifications
Number per Carton: 1

Carton Weight: 5.80 LB (2.63 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
