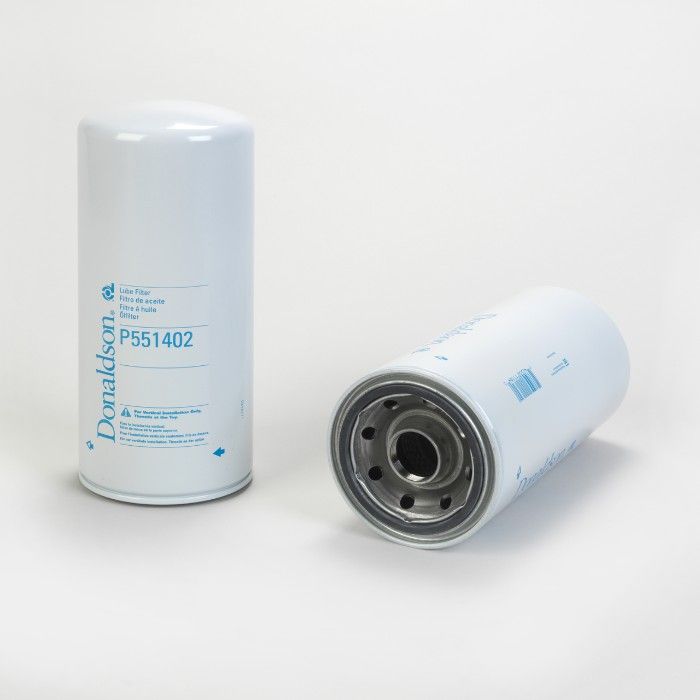

P551402 OEM DONALDSON

The P551402 is designed to maintain oil cleanliness and protect engines from wear-causing contaminants. It captures impurities that accumulate during operation, supporting extended oil life and efficient lubrication while delivering cleaner fluids to your engine components. Built with durable components and tested for consistent filtration performance, it provides dependable protection across a wide range of operating conditions.

Spin-On Filter Element

Usually Ships In 24-48 Hours

Dimensional Specifications

Outer Diameter 5.31 inch (135 mm)

Thread Size 1 1/2-16 UN

Length 12.13 inch (308 mm)

Gasket OD 4.29 inch (109 mm)

Gasket ID 3.94 inch (100 mm)

Efficiency 99% 21 micron

Efficiency Test Std ISO 16889

Bypass Valve Yes

Bypass Valve Setting LR 32 psi (2.2 bar)

Bypass Valve Setting HR 39 psi (2.7 bar)

Media Type Cellulose

Type Full-Flow

Style Spin-On Primary

Application Vertical installation only – Threads at the top

Packaged Dimensions

Packaged Length 5.28 inch (13.411 cm)

Packaged Width 5.28 inch (13.411 cm)

Packaged Height 12.13 inch (30.810 cm)

Packaged Weight 4.16 lb (1.887 kg)

Packaged Volume 0.20 ft3 (0.006 m3)

NMFC Code 069100-10

UPC Code 742330111642
Number per Carton: 1

Carton Weight: 4LB
