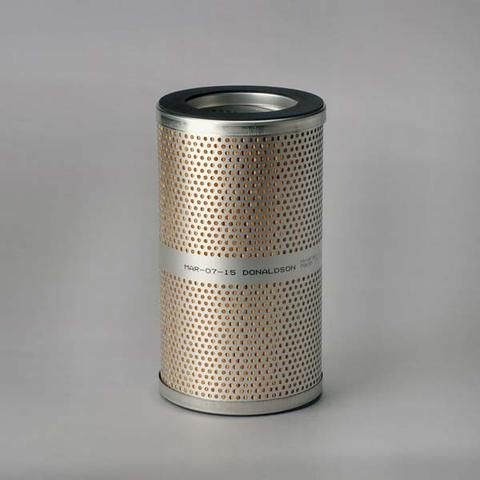

P551095 | Donaldson | OFS # 97-01-0445
Performance Data
Micron Rating: 10.00 NOMINAL
Beta Rating: N/A
Collapse Pressure Rating:
Maximum Temperature:
Direction of Flow: OUTSIDE->IN
Recommended Change-out Differential Pressure: 20 PSID
Dimensional Specifications
Outer Diameter, Top: 5.10 IN (129.54 MM)
Outer Diameter, Bottom: 5.10 IN (129.54 MM)
Inner Diameter, Top: 3.35 IN (85.09 MM)
Inner Diameter, Bottom: 3.35 IN (85.09 MM)
Length: 9.00 IN (228.60 MM)
Thread: NONE
Physical Specifications
Handle: NONE
Seal Material: NONE
Type of Adhesive:
Type of Endcap: PLATED STEEL
Center Tube: PLATED STEEL
Type of Media: PAPER
Filter Area: SQ.IN.
Plating:
Outer Jacket: YES
Configuration: DOUBLE OPEN END
Packaging Specifications
Number per Carton: 6
Carton Weight: 20.60 LB (9.34 KG)
**All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
