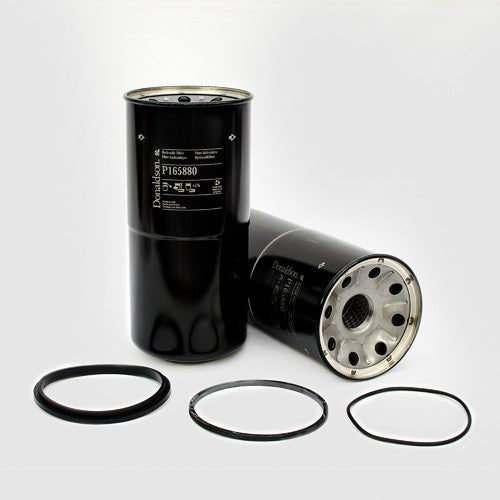

P165880 | DONALDSON | Spin-on Filter Element
***Image may vary***

P165880 | Donaldson | Spin-on Filter Element

  • $96.42


OFS # 97-F7500-8K40B

Lead Time: Usually Ships In 24-48 Hours

Performance Data
Micron Rating: 40.00 ABSOLUTE

Beta Rating: B40 = 200

Collapse Pressure Rating: 100 PSID

Maximum Temperature: 250 F

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 50 PSID



Dimensional Specifications
Outer Diameter, Top: 5.06 IN (128.52 MM)

Outer Diameter, Bottom: 5.06 IN (128.52 MM)

Inner Diameter, Top:

Inner Diameter, Bottom:

Length: 11.00 IN (279.40 MM)

Thread: 1 1/2"-16



Physical Specifications
Handle: NONE

Seal Material: BUNA-N

Type of Adhesive: EPOXY

Type of Endcap: PLATED STEEL

Type of Filter: SPIN-ON FILTER ELEMENT

Center Tube: PLATED STEEL

Type of Media: MICROGLASS

Filter Area: SQ.IN.

Plating: ZINC PLATED

Outer Jacket: NONE

Configuration: SINGLE OPEN END



Packaging Specifications
Number per Carton: 6

Carton Weight: 18.00 LB (8.16 KG)

**All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
