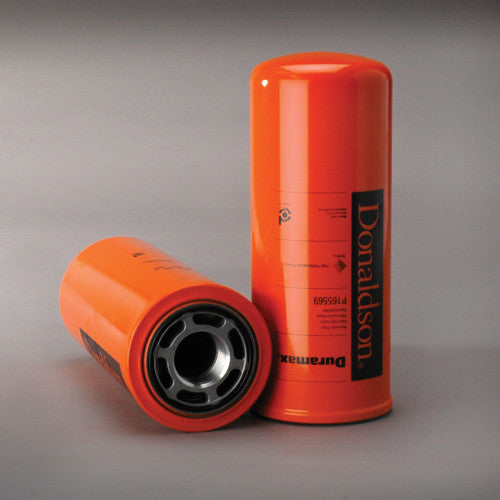

P165569 | DONALDSON | Spin-on Filter Element
***Image may vary***

P165569 | Donaldson | Spin-on Filter Element | OFS # 97-01-0458

  • $89.94


Spin-On Filter Element Usually Ships In 24-48 Hours

Performance Data
Micron Rating: 12.00

Beta Rating: B10=200

Collapse Pressure Rating: 200 PSI

Maximum Temperature: 275 F

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID

Additional Notes: HEAVY DUTY HIGH PERFORMANCE ELEMENT.



Dimensional Specifications
Outer Diameter, Top: 4.82 IN (122.43 MM)

Outer Diameter, Bottom: 4.82 IN (122.43 MM)

Inner Diameter, Top:

Inner Diameter, Bottom:

Length: 11.59 IN (294.39 MM)

Thread: 1 3/4-12



Physical Specifications
Handle: NONE

Seal Material: BUNA-N

Type of Adhesive: EPOXY

Type of Endcap: PLATED STEEL

Center Tube: PLATED STEEL

Type of Media: MICROGLASS

Filter Area: SQ.IN.

Plating:

Outer Jacket: YES

Configuration: SINGLE OPEN END



Packaging Specifications
Number per Carton: 6

Carton Weight: 2.00 LB (0.91 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
