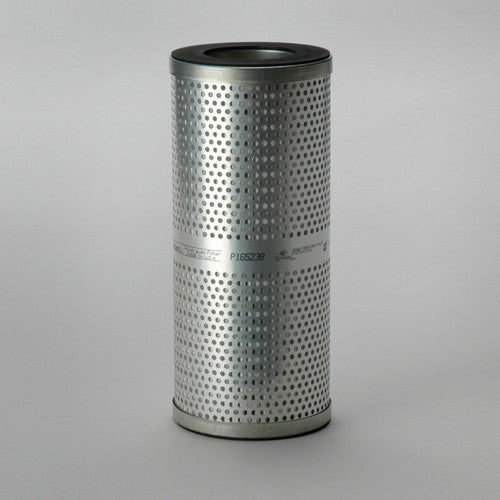

P165238 | DONALDSON | Pleated Microglass Filter Element
***Image may vary***

P165238 | Donaldson | OFS # 97-01-0920

  • $31.15


Usually Ships In 24-48 Hours

Performance Data
Micron Rating: 0.00 NOMINAL

Beta Rating:

Collapse Pressure Rating:

Maximum Temperature: 225 F

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID



Dimensional Specifications
Outer Diameter, Top: 3.94 IN (100.08 MM)

Outer Diameter, Bottom:

Inner Diameter, Top: 2.28 IN (57.91 MM)

Inner Diameter, Bottom:

Length: 9.25 IN (234.95 MM)

Thread: NONE



Physical Specifications
Handle: NONE

Seal Material:

Type of Adhesive:

Type of Endcap: PLATED STEEL

Center Tube: PLATED STEEL

Type of Media: MICROGLASS

Filter Area: SQ.IN.

Plating:

Outer Jacket: YES

Configuration: DOUBLE OPEN END



Packaging Specifications
Number per Carton: 1

Carton Weight: 26.80 LB (12.16 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
