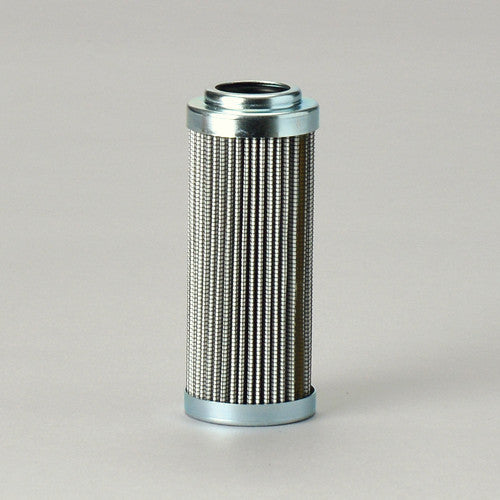

P165006 | DONALDSON | Pleated Microglass Filter Element
***Image may vary***

P165006 | Donaldson | Pleated MicroGlass Element | OFS 97-F9020-4K12B

  • $25.24


PLEATED MICROGLASS ELEMENT
    Click The Button Below To View All The Products That Cross Reference Donaldson P165006



Shipping & Packaging Specifications
Number per Carton: 1

Carton Weight: 1.00 LB (0.45 KG)

Lead Time: Usually Ships In 24-48 Hours

Shipping Service: UPS Ground



Performance Data
Micron Rating: 12.00 ABSOLUTE

Beta Rating: B12=200

Collapse Pressure Rating: 150 PSID

Maximum Temperature: 250 F

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 50 PSID

Additional Notes: REPLACES PALL IND. HYDRAULICS CORP 64130 P/N HC9020FKS4H



Dimensional Specifications
Outer Diameter, Top: 1.80 IN (45.72 MM)

Outer Diameter, Bottom: 1.80 IN (45.72 MM)

Inner Diameter, Top: 1.02 IN (25.91 MM)

Inner Diameter, Bottom:

Length: 4.50 IN (114.30 MM)

Thread: NONE



Physical Specifications
Handle: NONE

Seal Material: BUNA-N

Type of Adhesive: EPOXY

Type of Endcap: PLATED STEEL

Center Tube: PLATED STEEL

Type of Media: MICROGLASS

Filter Area: SQ.IN.

Plating: ZINC PLATED

Outer Jacket: NONE - NONE

Configuration: SINGLE OPEN END



**All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacturer parts, Names and part # used for cross reference only.**
